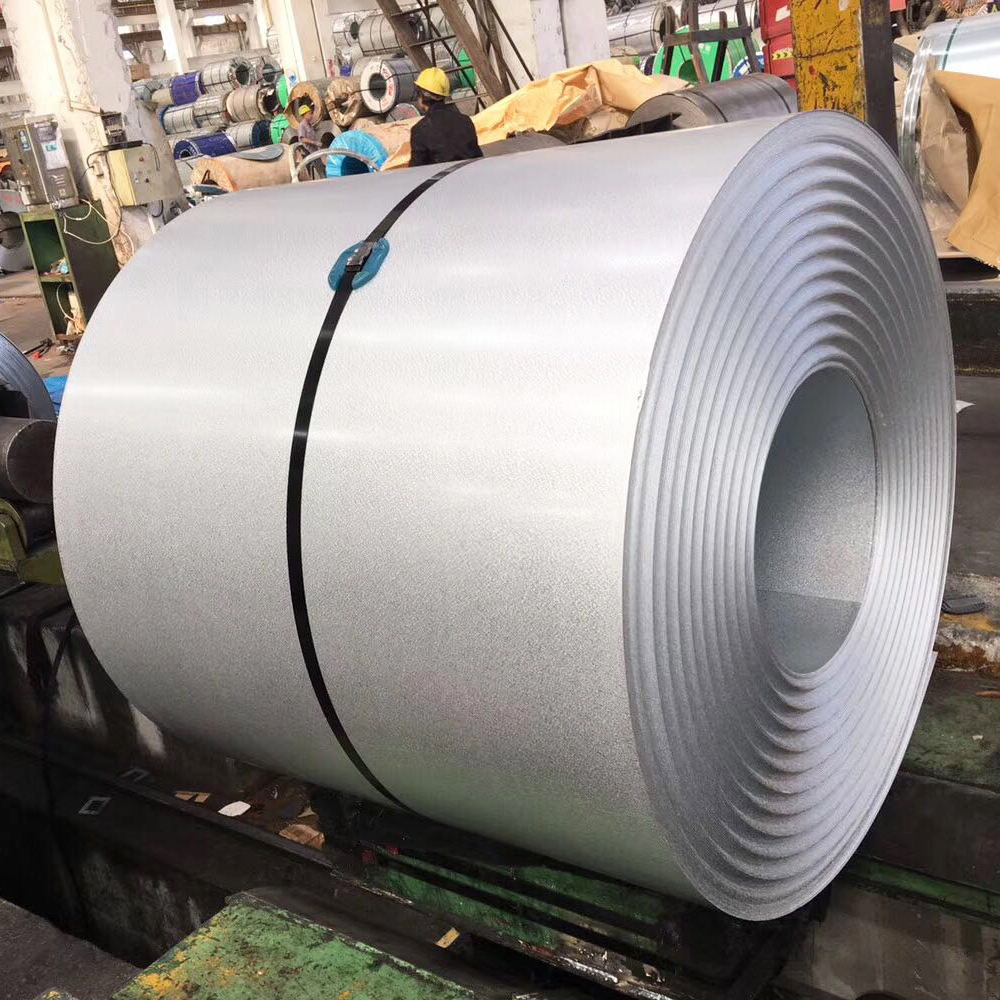

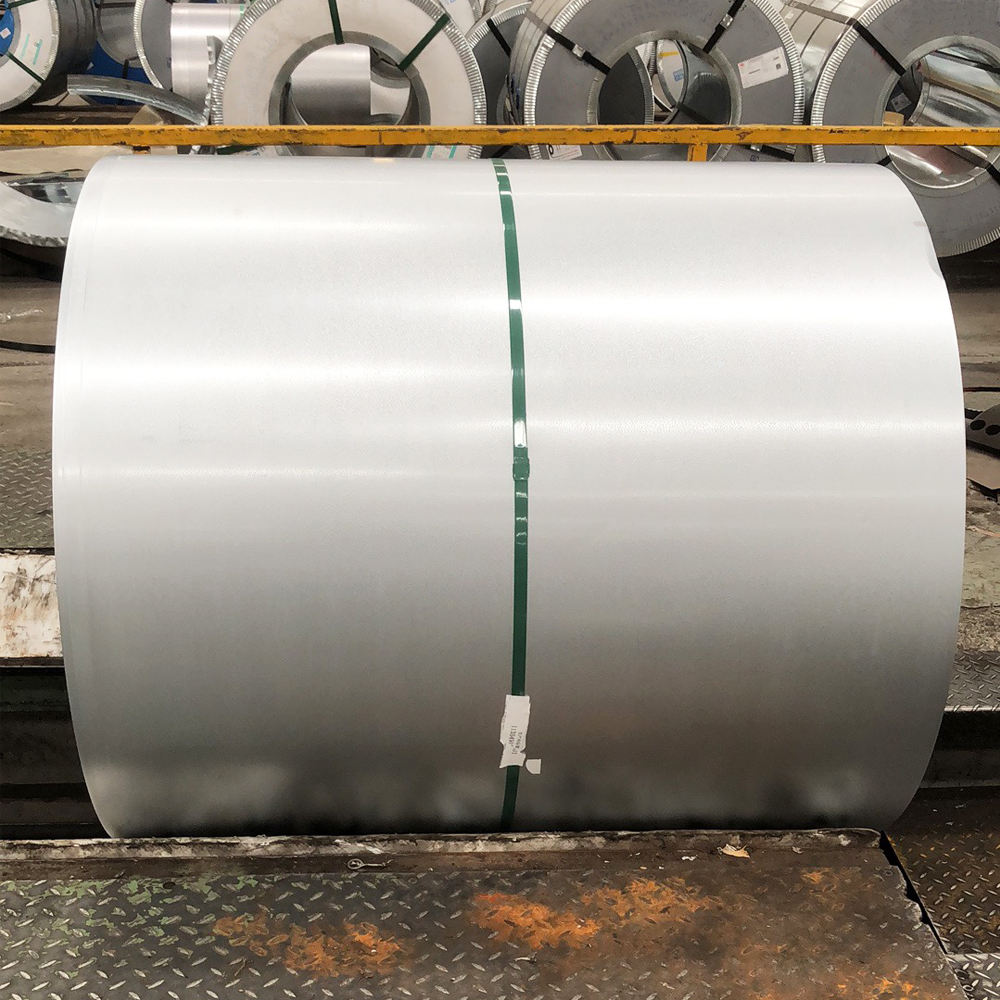

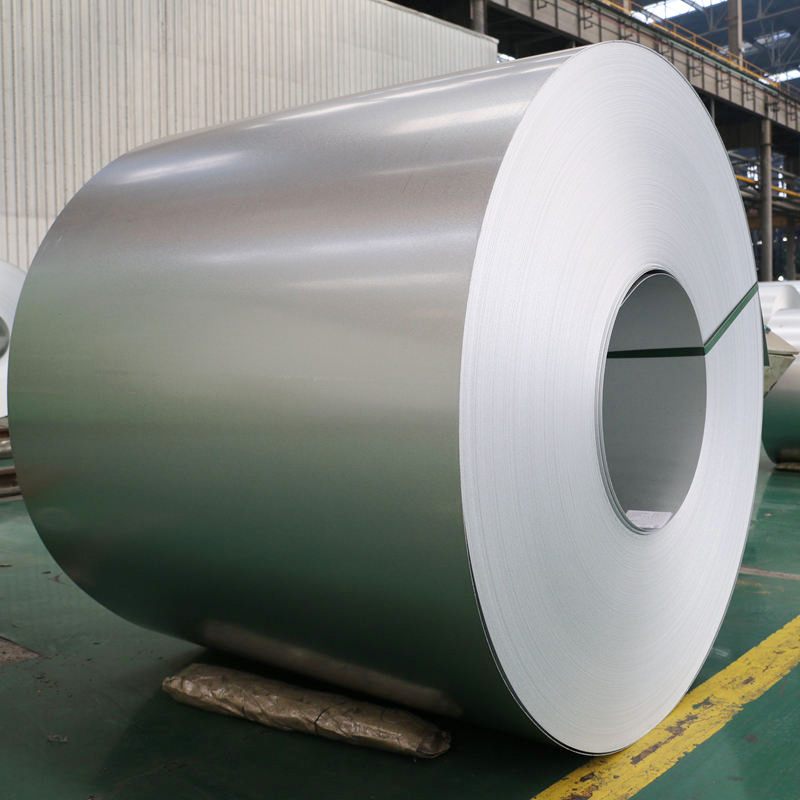

Galvalume Steel Coil (GL / AZ)
Hot-dip aluminum-zinc coated steel coil with excellent heat resistance and corrosion resistance, ideal for high-temperature and outdoor applications.
- ✅ Superior heat resistance (up to 315°C continuous use)
- ✅ Good anti-corrosion performance, longer service life
- ✅ Excellent formability and paint adhesion
- ✅ Suitable for high-temperature processing and painting
- ✅ Meets international standards with complete certifications
| Parameter | Specification |
|---|---|
| Product Name | Galvalume Steel Coil (GL / AZ) |
| Standard | ASTM A792, EN 10346, JIS G3321 |
| Base Grade | DX51D+AZ, SGCC, S250GD+AZ, S350GD+AZ |
| Thickness | 0.15mm – 3.0mm |
| Width | 600mm – 1500mm |
| Coating Composition | 55% Al, 43.4% Zn, 1.6% Si |
| Coating Weight | AZ50 – AZ150 (50–150g/m²) |
| Surface Treatment | Passivated / Anti-fingerprint / Oiled |
| Spangle | Regular / Minimized |
| Coil Weight | 2–15 tons (customizable) |
| Inner Diameter | 508mm / 610mm |
| Certification | ISO 9001, CE, SGS, BV |
| Application Field | Details |
|---|---|
| High-Temperature Applications | Oven parts, exhaust ducts, chimneys |
| Roofing & Cladding | Industrial roofs, wall panels, ventilation systems |
| Appliance Manufacturing | Air conditioner parts, heater shells, kitchenware |
| Construction Materials | Metal tiles, corrugated sheets, structural components |
| Item | Details |
|---|---|
| Packaging | Export standard seaworthy package (waterproof paper + steel strapping + wooden pallets) |
| Loading | 20GP / 40GP Container |
| Lead Time | 7–15 working days after deposit |
| Shipping Port | Qingdao / Tianjin / Shanghai (negotiable) |
